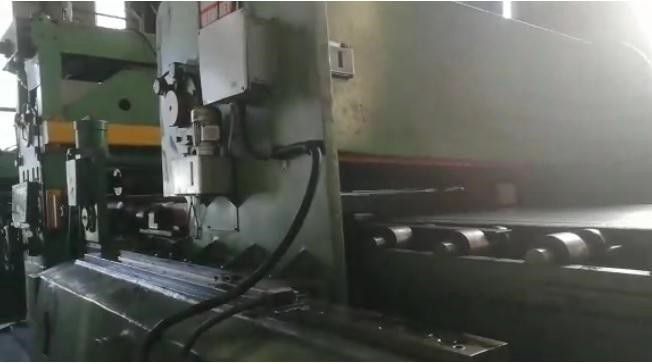

GENERAL DESCRIPTION OF LINE

Manufacturer   FIMI – ITALY

Manufacturer Year:1974

Revision date: 2019- FULL OVERHAUL

Leveller revision: 2019

Otomation Full Revision date: 2015

Line Status: In Operation

Roll sand levers back-up bearings renewed Under power

Material: CR-GZR-RP-RKK

    Yield Strength           : 180-400 Mpa

    Tensile Strength        : 220-550 Mpa

Coil Weight: 30 ton

Coil Width: 700-2000 mm

Coil Thickness: 1.5 – 8 mm

Coil İnner Dia: Ø508-610-762

Coil Outer Dia: Ø2100

Line Speed: 1-25 meter/min

Coil Car Lifting: Hydraulic Type

Uncoiler: Double Cone type

Antibraker :2 pcs. Back up Roll

Pinch Roll:1+1 total 2 rolls

Straightener:2+2 total 4 rolls

Straightener upper pres: Hydraulic Cylinder

Straightener drive type: Electrical motor

Leveller Type:Hydraulic

Hydraulic Leveller : 8 + 7  total 15 rolls

ShearTtype: Flying Shear

Flying Shear Conveyor : Belt Conveyor

Stacker : Free drop (Side pusher and back bumper)

Sheet Width:700-2000 mm

Sheet Length:300-13000 mm

Packet Size(min):300x700 mm

Packet Size(max):2000x13000 mm

Packet Weigth:5 ton

Packet Heigth:500 mm

Line Direction: Left to Rigth
